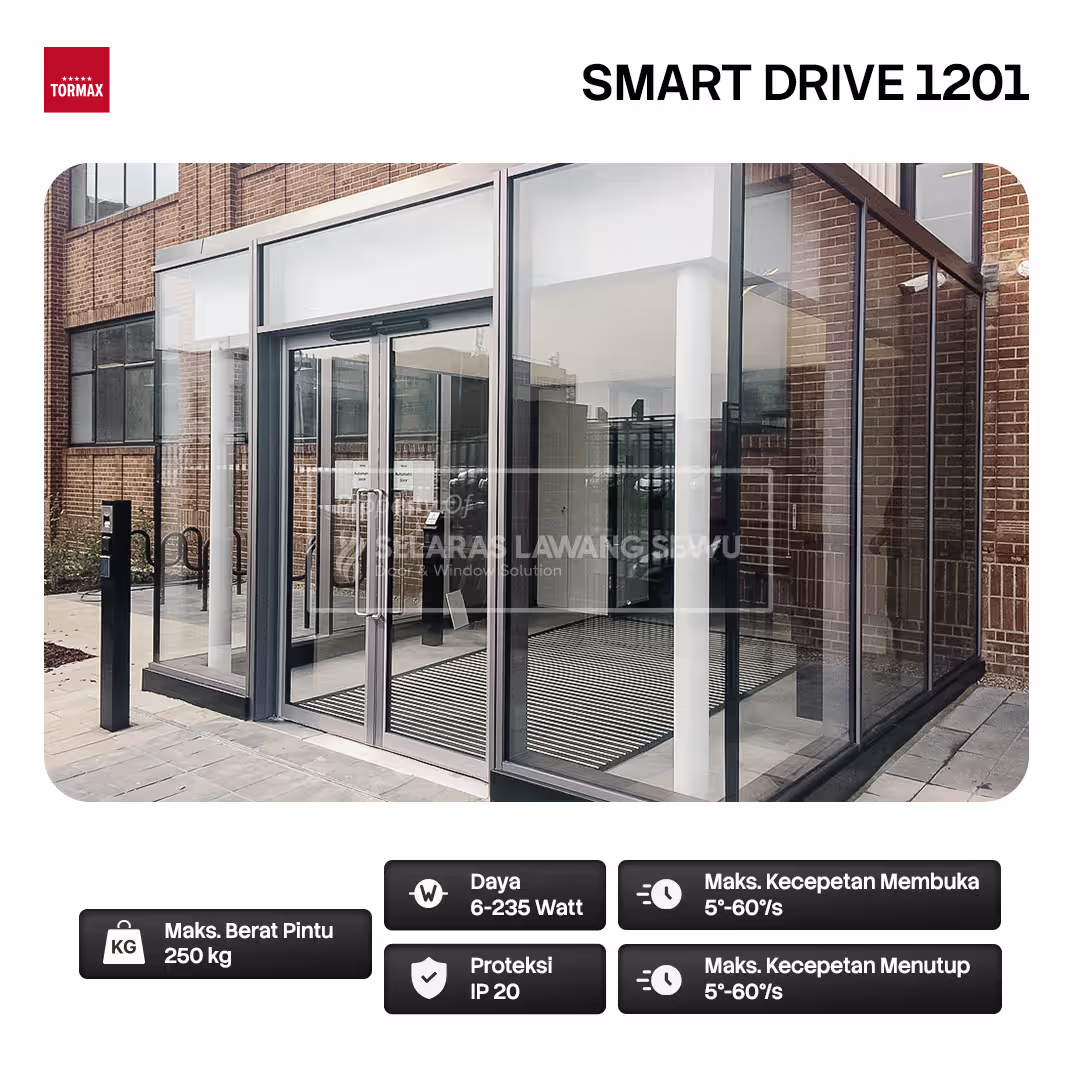

TORMAX Swing Otomatis Smart Drive LS 1201

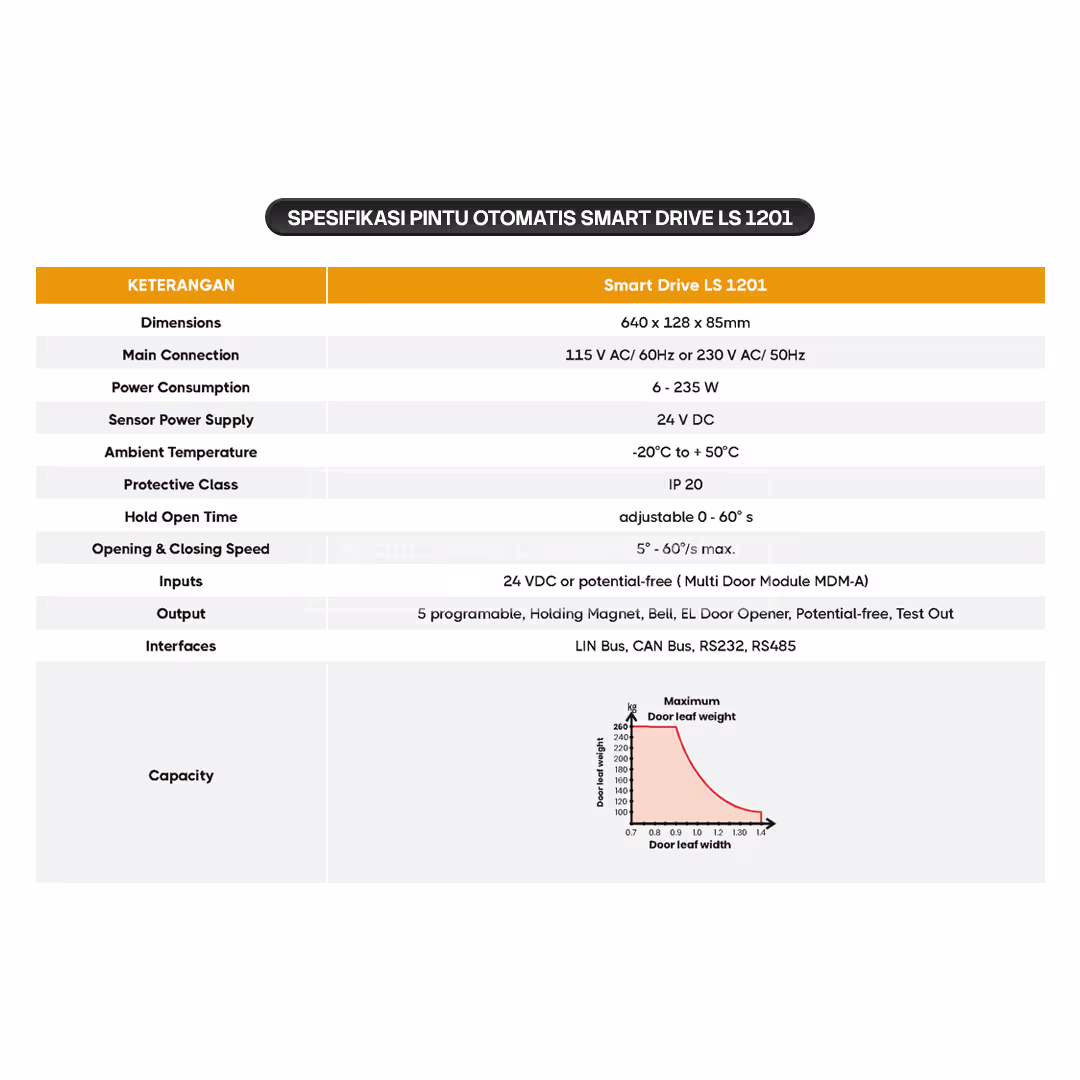

SPESIFIKASI
| KETERANGAN | SMART DRIVE LS 1201 |
| Dimensions | 640 x 128 x 85mm |
| Main Connection | 115 V AC/ 60Hz or 230 V AC/ 50Hz |
| Power Consumption | 6 – 235 W |
| Sensor Power Supply | 24 V DC |
| Ambient Temperature | -20°C to + 50°C |
| Protective Class | IP 20 |
| Hold Open Time | adjustable 0 – 60° s |
| Opening & Closing Speed | 5° – 60°/s max. |
| Inputs | 24 VDC or potential-free ( Multi Door Module MDM-A) |
| Output | 5 programable, Holding Magnet, Bell, EL Door Opener, Potential-free, Test Out |
| Interfaces | LIN Bus, CAN Bus, RS232, RS485 |
