Spesifikasi Pintu Otomatis iMotion LS 1301 Asli & Bergaransi

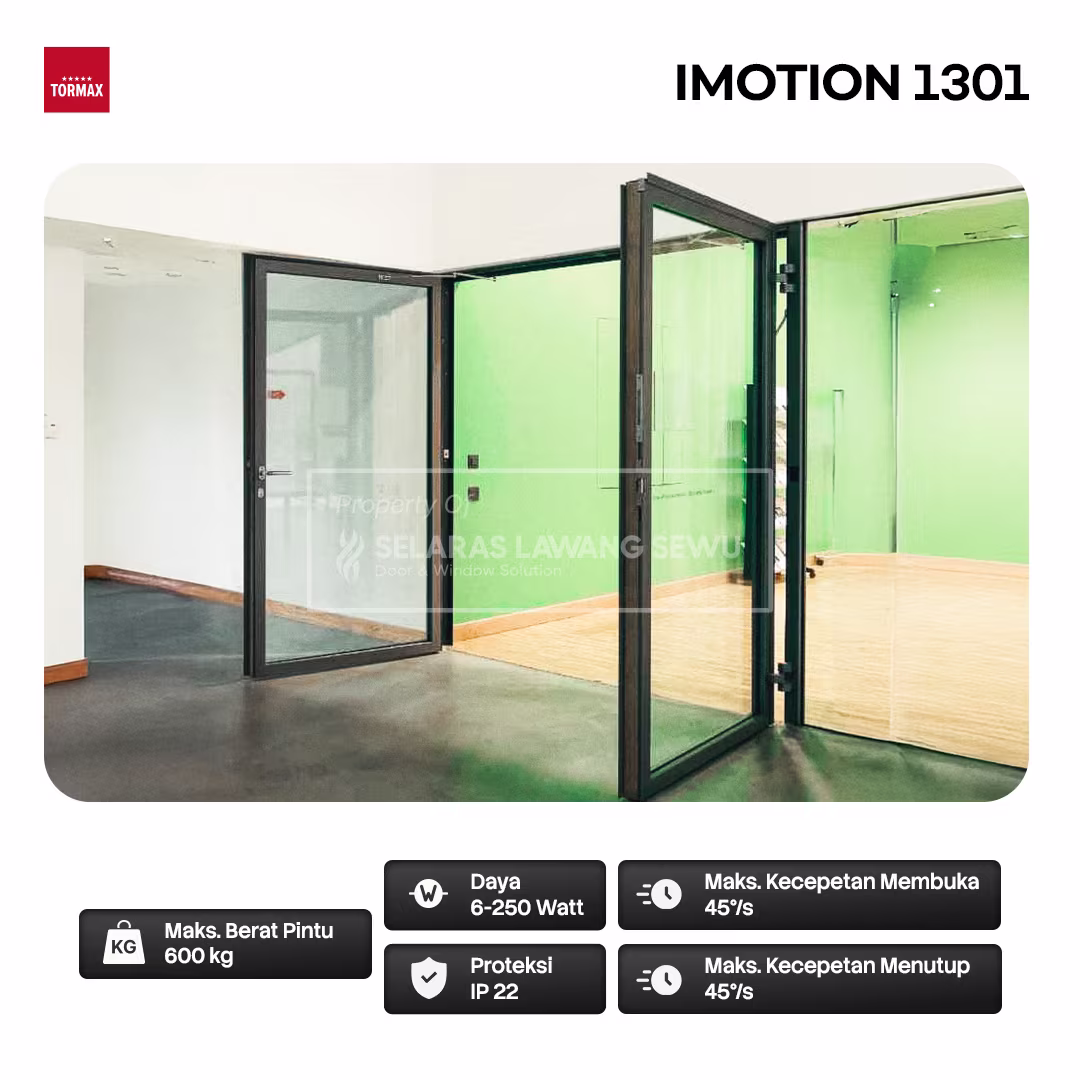

TORMAX Swing Otomatis iMotion LS 1301

KETERANGAN	IMOTION 1301 / 1301.S
Dimensions	450 x 128 x 85 mm
Main Connection	115 V AC / 60 Hz or 230 V AC / 50 Hz
Power Consumption	5 – 130 W
Sensor Power Supply	24 V DC / 2 A
Ambient Temperature	-20°C to + 50°C
Protective Class	IP 20
Hold Open Time	adjustable 0 – 60 s
Opening Speed	5° – 40° / s max.
Closing Speed	5° – 40° / s max.
Inputs	24 V DC or potential-free (Multi Door Module MDM-A)
Output	5 programmable, Holding Magnet, Bell, EL Door Opener, Potential-free, Test Out
Interfaces	LIN Bus, CAN Bus, RS 232
