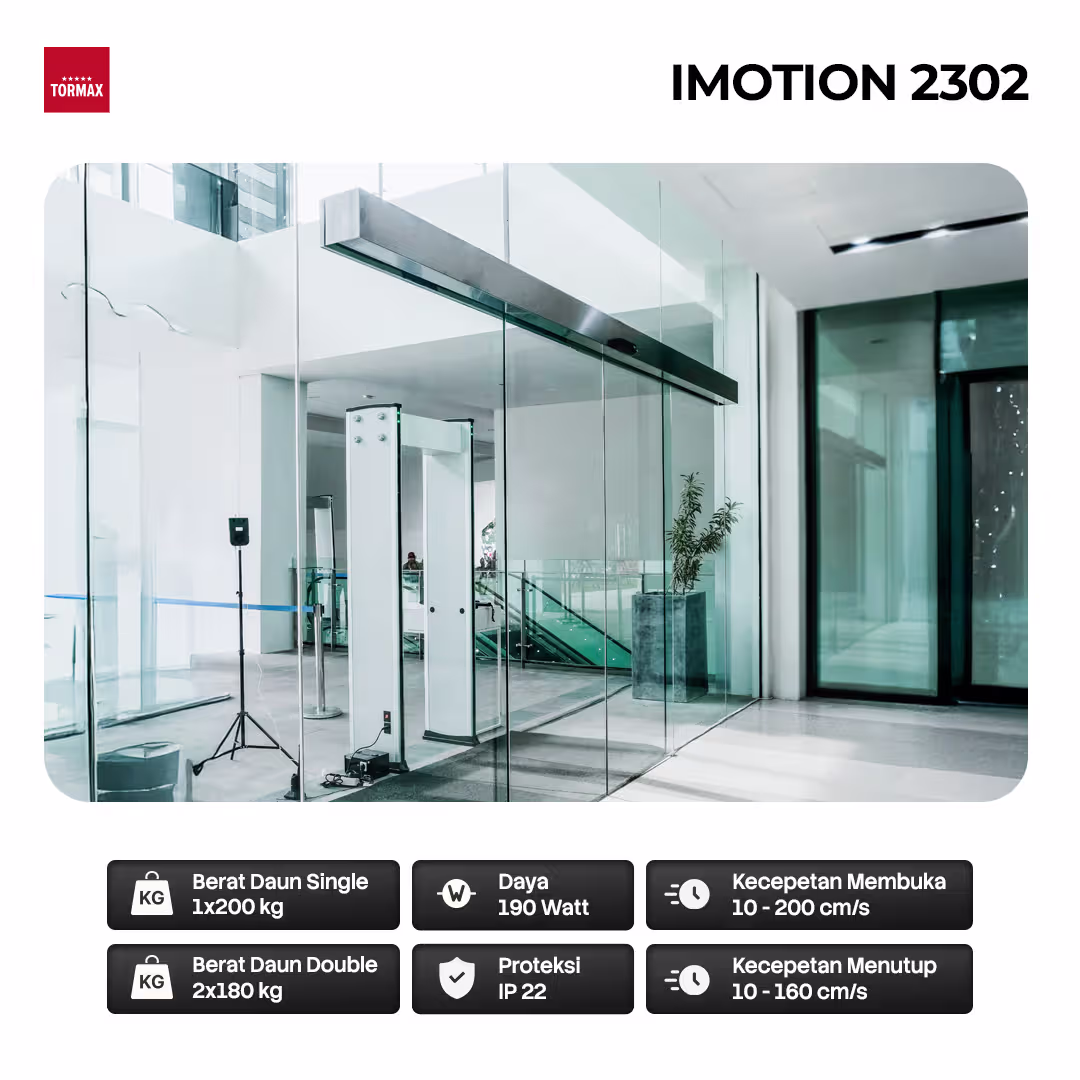

TORMAX Sliding Otomatis iMotion 2302
SPESIFIKASI
| KETERANGAN | iMOTION 2302 |
| Motor Type | Gearless synchronous motor |
| Processor | Digital microprocessor c/w error detection historical data |
| Historical Digital Basis Auto | Digital adjustable function, basis for UN / CAN interface, Auto learning, Auto reversing |
| Max. Leaf Weight Single | 1x200kg |
| Max. Leaf Weight Double | 2x180kg |
| Telescopic Single | 2x120kg |
| Telescopic Double | 4x100kg |
| Opening Speed | 10 – 200cm/s |
| Closing Speed | 10 – 160cm/s |
| Hold Open Time | 0,5 – 60s |
| Lock | Electric Lock Direct to Trolley |
| Facility Input | 8 |
| Output | 3 |
| Interfaces | LIN Bus, CAN Bus, RS 232 1×230/1×115 VAC 50…60Hz, 10 A |
| Power Consumption | Max. 190 W |
| Protection Class | IP 22 |
| Test according to | DIN 1850, EN 60355-1, EN 61000-6-2, EN 61000-6-3 |
| Certification | CE RoHS, TUV, ETL |
