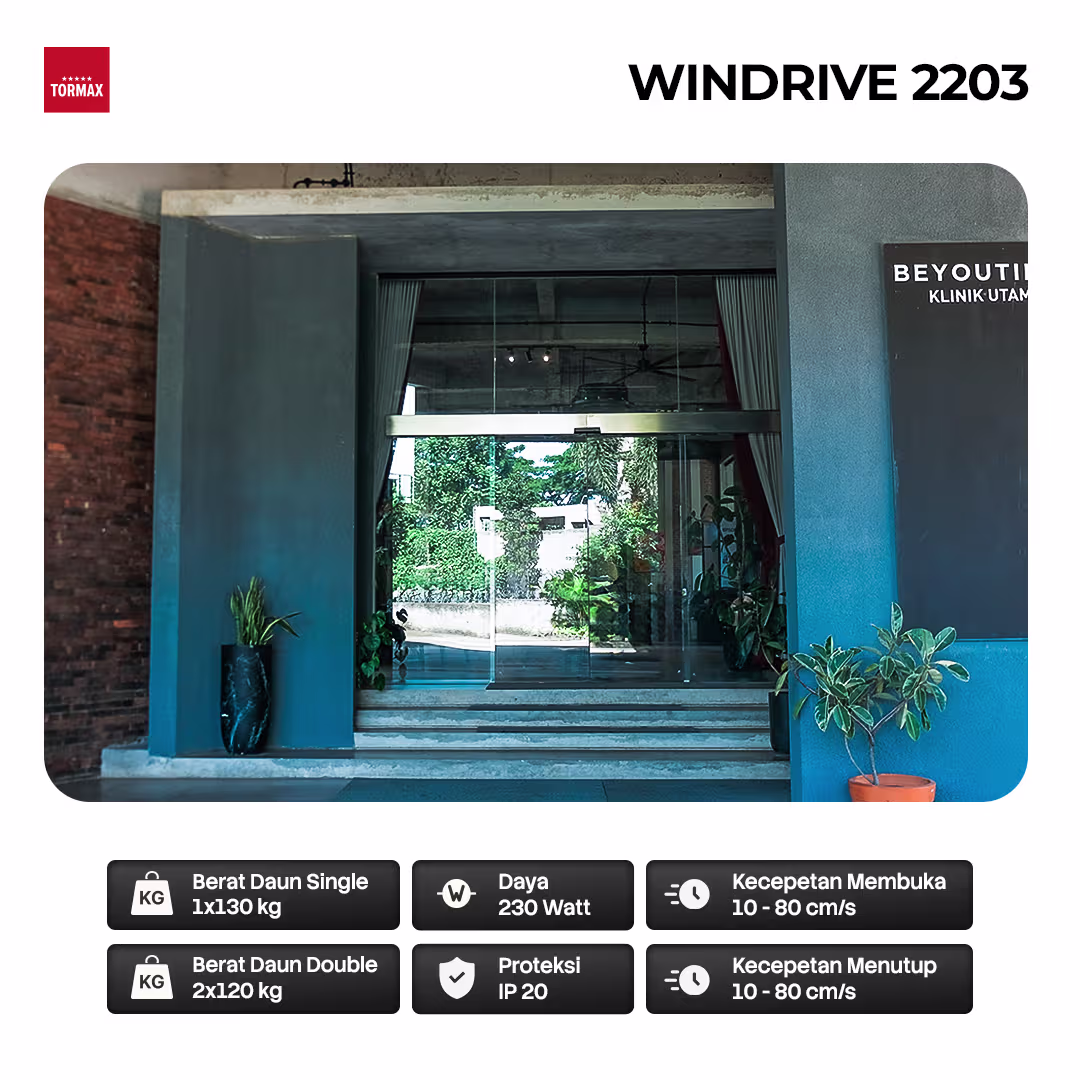

TORMAX Sliding Otomatis iMotion 2203
SPESIFIKASI
| KETERANGAN | WINDRIVE 2203 |
| Motor Type | Tormax Motor with coding device |
| Processor | Digital microprocessor c/w error detection historical data |
| Historical Digital Basis Auto | Digital adjustable function, basis for UN / CAN interface, Auto learning, Auto reversing |
| Max. Leaf Weight Single | 1x130kg |
| Max. Leaf Weight Double | 2x120kg |

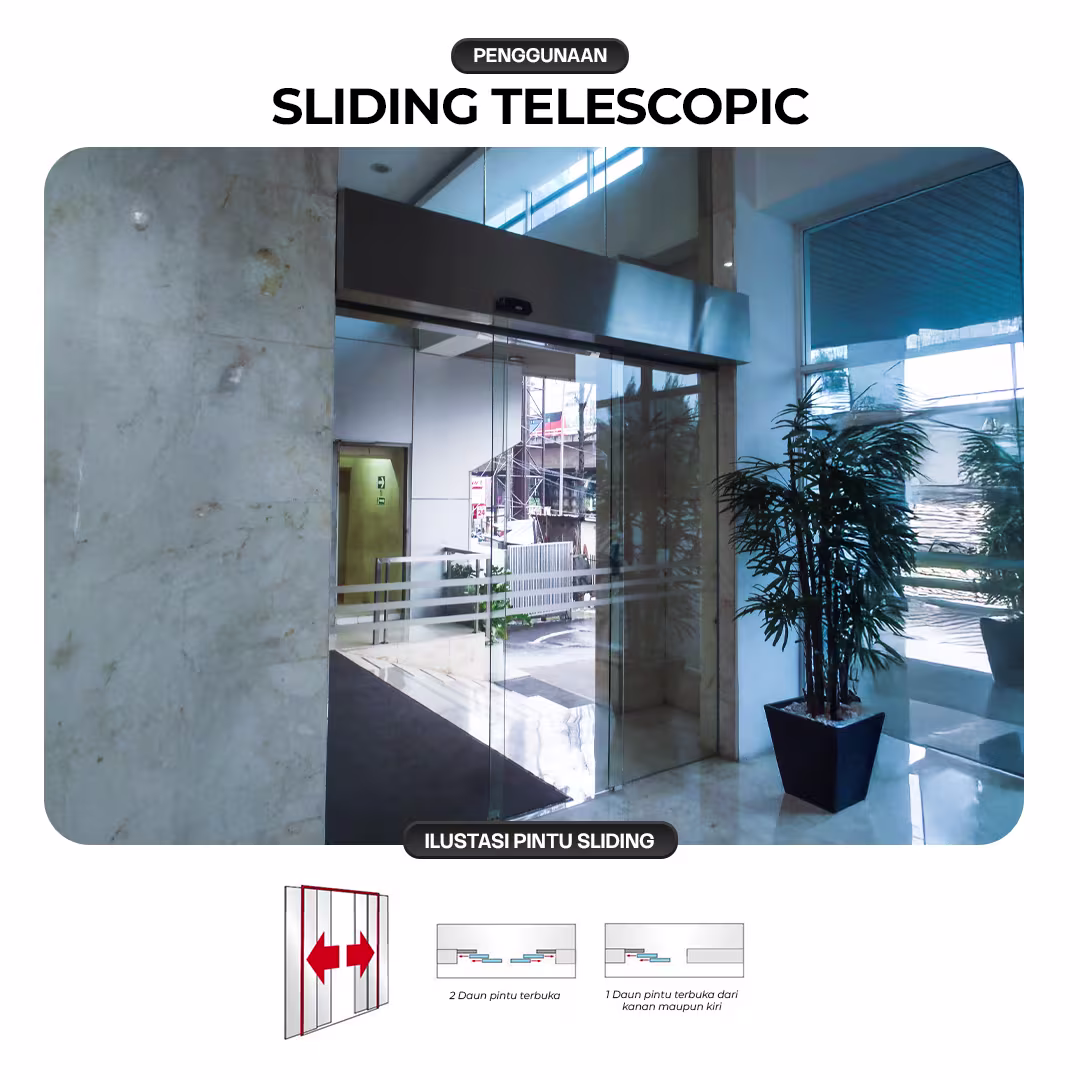

| Telescopic Single | 2x80kg |
| Telescopic Double | 4x80kg |
| Opening Speed | 10 – 80cm/s |
| Closing Speed | 10 – 80cm/s |
| Hold Open Time | 0,5 – 120s |
| Lock | Electric Lock Direct to Trolley |
| Facility Input | 7 |
| Output | 3 |
| Interfaces | LIN Bus |
| Power Consumption | 230 W |
| Protection Class | IP 20 |
| Test according to | EN 12100, EN 60355-1, EN 61000-6-3, Performance level c acc. DIN EN ISO 13849-1:2008 |
| Certification | CE RoHS, TUV, ETL |
